Spray Foam in Crawl Spaces: Benefits, Risks, and Alternatives

Closed-Cell Spray Foam has redefined insulating and air sealing projects. With benefits like sealing out air, forming a structurally sound plastic, and having a high R-value per board foot, homeowners often wonder, "Can we spray foam the crawl space?"

While the solution to that is a little complicated, the short answer is: We do not recommend to spray foam floors or floor joists. However, spraying the rim or band joist is often a great solution which is lower risk.

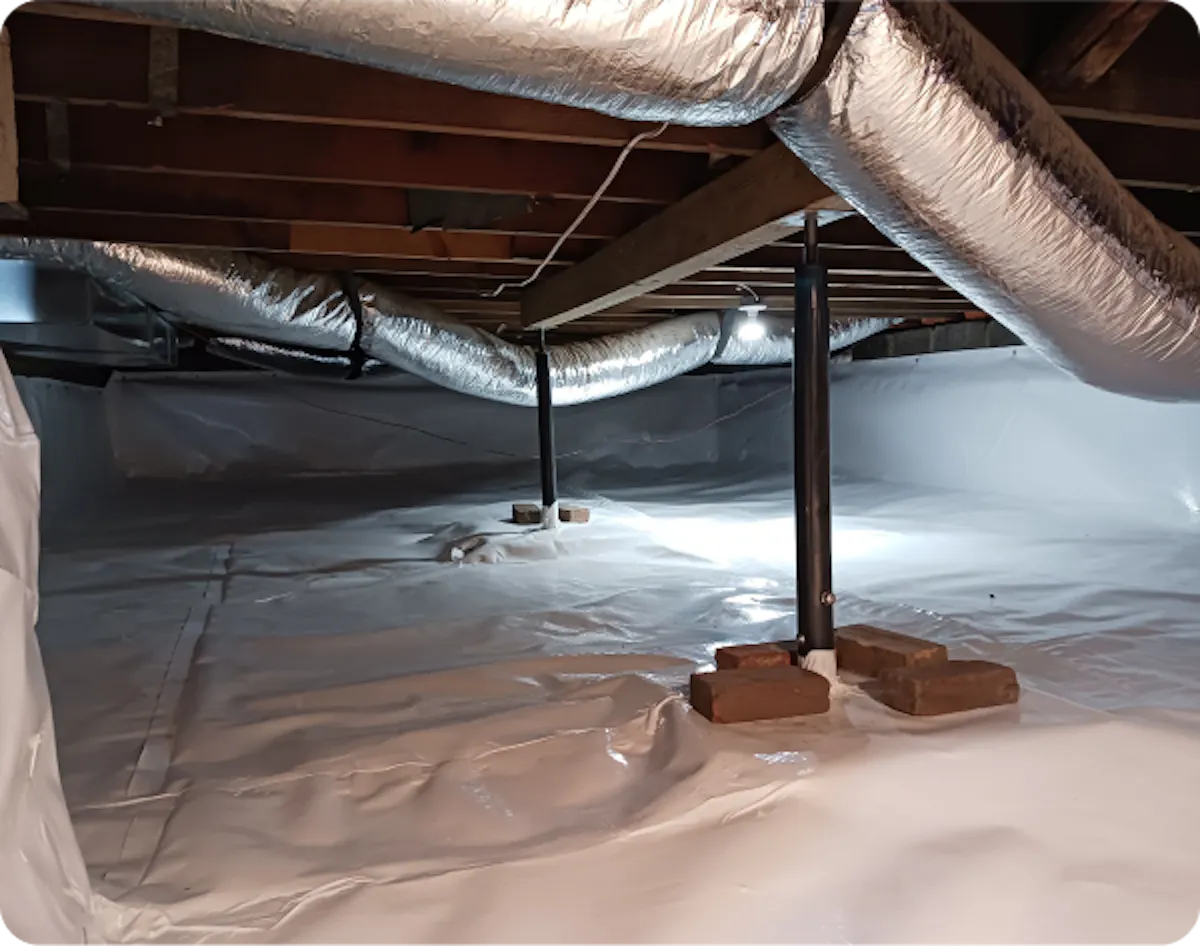

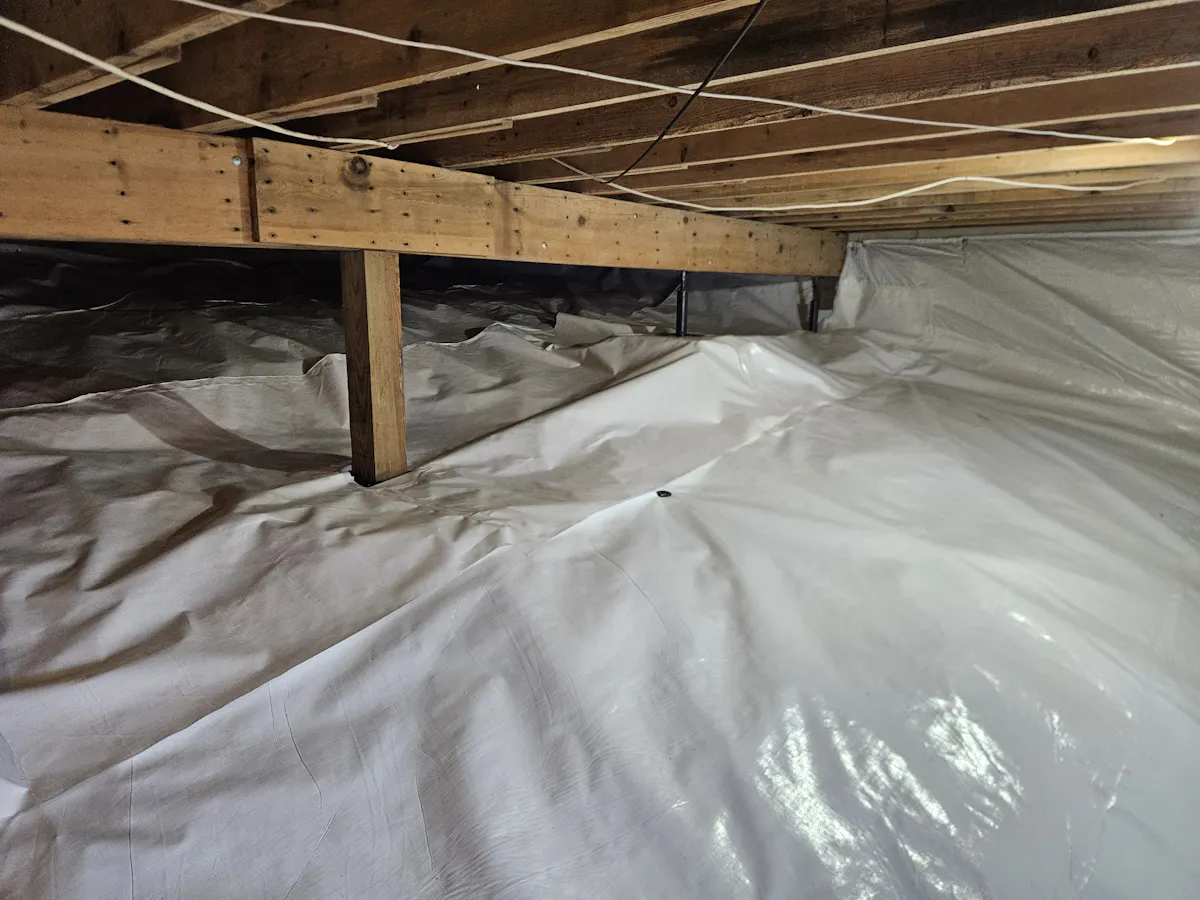

The Moisture Problem: Crawl spaces usually accommodate utilities like plumbing, electrical systems, and HVAC. Particularly in humid climates, they are susceptible to plumbing leaks, external humidity, and water vapor which emanates up from the ground. It’s for this reason that crawl spaces in humid areas should have existing vents sealed, the inside encapsulated with highly effective and long-lasting materials, and actively dehumidified.  With a fully encapsulated crawlspace and a dehumidifier, having exposed sub floors and floor joists is ideal, to allow the wood to maintain a low moisture level and therefore extend the life of your structure.  Insulation and air sealing should be moved to the walls of your crawl space, where it can keep you and your utilities toasty in the winter time and eliminate mice and pests that find homes in fiberglass floor insulation. Fiberglass bat insulation under your floors can also hold onto humidity, and needs to be replaced frequently. Fully encapsulated and humidity-controlled crawlspaces are virtually maintenance and worry free.

These steps will protect the wooden structure that supports your home, and allow you to “check in” on your wood and utilities over time to ensure you have a clean and mold free environment to come home to.  That is, unless you hide it, conceal potential problems, and trap moisture using spray foam.

Where it Doesn't Belong: Spray foam has very different properties as compared to wood.  It is an inert, robust plastic that's air and moisture-resistant due to its closed-cell nature. But when faced with all of the leaks and moisture in a crawl space, spray foaming the floors can trap that moisture, exacerbating rot issues and hiding any moisture or rot issues from being seen. This makes mold treatment and repair nearly impossible without costly sub floor replacement.  Removing foam, especially in a cramped crawl space, is an extremely difficult, costly, and hazardous endeavor.  This translates to big bucks and bad news over time for homeowners.

Pest Havens: Beyond trapping moisture and damaging wooden joists, sprayed floor joists can also become cozy retreats for bugs who get in through gaps in any perimeter openings in concrete, dirt, block, or rim joist. Over time, these pests leave droppings on the foam, creating an unsightly mess. This adds another level of hazard during removal or remediation of spray foam jobs.  In a large percentage of cases, it may be cheaper for a contractor to simply replace your entire floor.

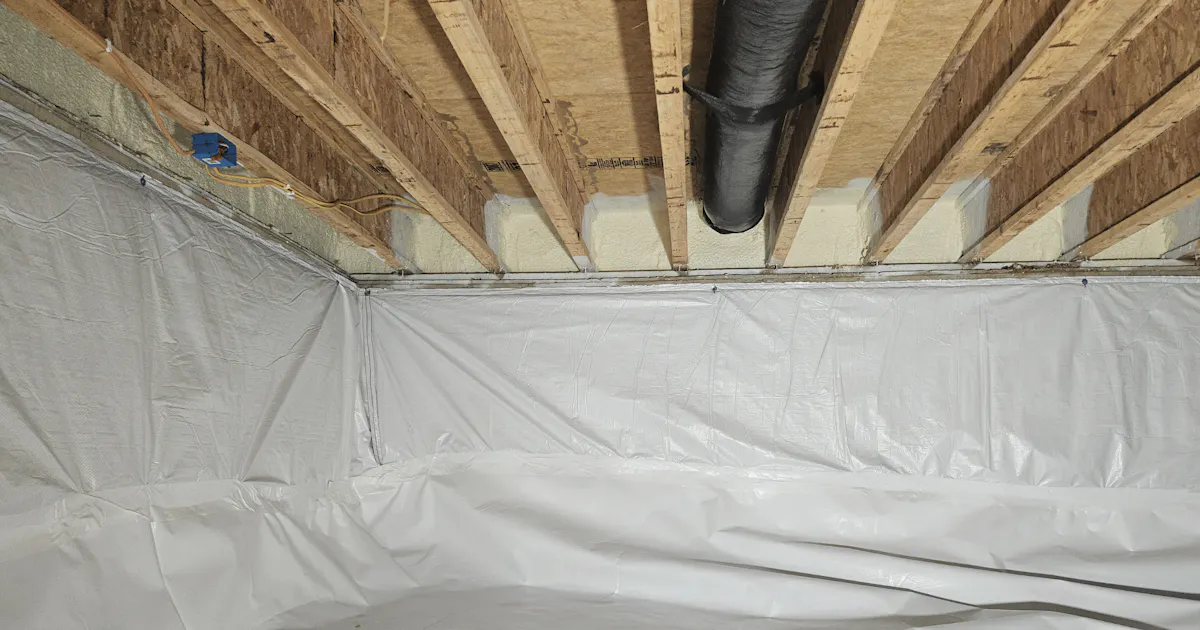

Where Do We Put Spray Foam In a Crawlspace?  Rim joists, comprising the outer edge of the horizontal plane that is a platform-framed floor, are notorious entry points for air leakage and bugs.  Assuming the siding is in decent shape and properly flashed, as well as doors, windows, grading, etc, the rim joists tend to be a dry and low-risk location for foam where the many benefits of spray foam can outweigh the risks.  However, it’s important to consider the unique challenges associated with crawl spaces: Minimal head room, difficult corners and utilities.  Because it can be difficult to maneuver in a crawl space, it’s not always practical to use an off the shelf two-part foam (such as Froth Pak).  Also, worker safety can be a large issue; the proper respiratory equipment “Supplied Air Respirator” umbilical line tends to get trapped.  Therefore, spray foaming rim joists is not always practical, and the quality can suffer as a result.  But importantly, this issue is most pronounced when using actual two-part professional spray foam; can foam can actually be a much easier and better solution. Read on…

An Efficient Compromise: We’ve found an effective solution that is easy to implement by many contractors, and which yields positive results for homeowners.  That is rigid foam board.  Rigid foam comes pre-cured from the factory in 4x8 sheets. The brands that we use are termite resistant, which provides a huge bonus.  By precision cutting the foam boards, and using a more stable one-part can foam to seal any gaps, we can get a great quality result that is as long lasting as two-part spray foam when done correctly.  To perform the same job efficiently and effectively, we ensure that the rigid foam is pressed completely against the rim joist so as to not create a microclimate for moisture.  Training is key, and this should be handled by a professional or a DIYer who understands good foam practice.

Navigating Existing Spray Foamed Floors: For those living in homes with already spray-foamed floors, monitoring humidity is paramount. High humidity can exacerbate issues, so it's advisable to rectify any damage, encapsulate the area, employ dehumidifiers, and get a thorough mold inspection.  Remember, spray foam is meant to be a permanent product.  Removing spray foam is a costly undertaking which may not always be practical, and preventing issues before they happen can mitigate a situation that is not ideal, but not easily mediated.

Spray Foam - Quality Above All: Spray foam's complexity means there's a lot that can go wrong. Quality, expertise, licensing, and insurance should be your top considerations when choosing a contractor. While budget matters, it shouldn't overshadow the significance of the investment. Even seasoned contractors can err, but the best ones will communicate and rectify those mistakes.
